Vitascan LT Bladder Scanner with Microsoft Surface Tablet
Vitascan LT Bladder Scanner with Microsoft Surface Tablet
Couldn't load pickup availability
- User-friendly and intuitive interface
- Paired with a tablet (powered by Windows OS)
- BladderVue™ delivers improved bladder detection
- Robust and accurate 3D sensor
- No routine calibration required
Vitascan LT Bladder Scanner
The Vitascan LT Bladder Scanner from VITACON features a user-friendly and intuitive interface. It offers reliable connectivity through USB-A or USB-C ports and includes a tablet with Windows OS. The high-resolution, adjustable display and energy-saving auto shut-off feature facilitate ease of use for operators.
The premium Vitascan LT Bladder Scanner integrates seamlessly into hospital systems and uses BladderVue™ technology for improved bladder detection. Its 3D sensor enables fully automatic 3D scanning in seconds. The bladder scanner operates on a long-lasting battery - no routine calibration needed. In addition, the Wi-Fi function allows automatic report transmission to EHR. An online learning platform is available for users.
Please note that the optional device insurance must be ordered at the time of purchasing a Vitascan bladder scanner. Subsequent insurance cover is not valid.
Product Details
- Vitascan LT Bladder Scanner from VITACON
- User-friendly and intuitive interface
- Reliable connectivity thanks to USB-A or USB-C ports

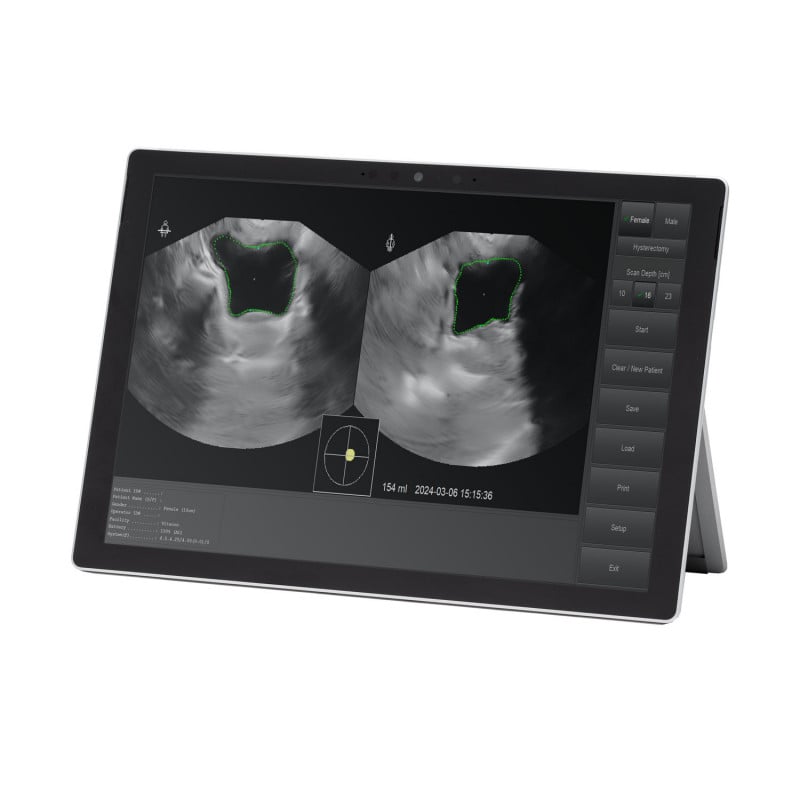

- Comes with a tablet (Windows OS)
- High-resolution display with adjustable brightness
- Energy-saving auto shut-off feature
- Extended and flexible integration options with hospital systems
- BladderVue™ technology for improved bladder detection

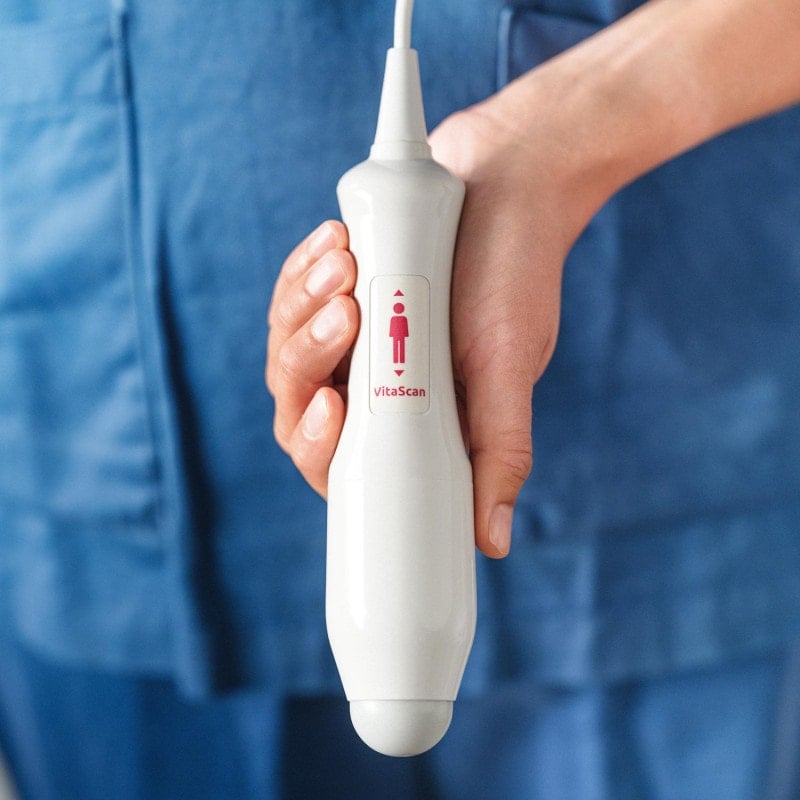

- Vitascan v.2 probe with single-button control
- Equipped with a robust and precise 3D sensor
- Fully automatic 3D scanning in just a few seconds
- Drop-tested to IEC 60601-1
- Operates with a durable battery
- No routine calibration required
- Onboard probe diagnostics and verification tests
- Free software upgrades available
- Wi-Fi for automatic report transfer to EHR
- Online learning platform available for users
- Available with different tablets
- Manufacturer's warranty: 2 years
Technical Specifications
| Volume Range | 0-1000 ml |
| Accuracy | +/- 7.5% for volumes over 100 ml +/- 7.5 ml for volumes under 100 ml |
| Probe Frequency | 3.45 MHz |
| Scanning Method | Sector, 180 degrees |
| Rotational Positions | 12 or 24 |
| Scanning Angle | 130 degrees |
| Display Resolution | 2160 x 1440 pixels (Chuwi Tablet) 2736 x 1824 pixels (Microsoft Tablet) |
| Power Supply | 100-240 VAC, 50-60 Hz |
| Dimensions/Weight (Chuwi Tablet) | 29.2 x 20.8 x 0.9 cm / 0.78 kg |
| Dimensions/Weight (Microsoft Tablet) | 29.2 x 20.1 x 0.8 cm / 0.78 kg |
| Dimensions/Weight (Probe) | 18.5 x 4.5 x 4.5 cm / 380 g |
Delivery Contents
- Vitascan v.2 Ultrasound Probe
- USB-C cable and power supply
- Probe cover
- Choice of tablet with pre-installed Vitascan LT software
- Tablet holder with adhesive tape

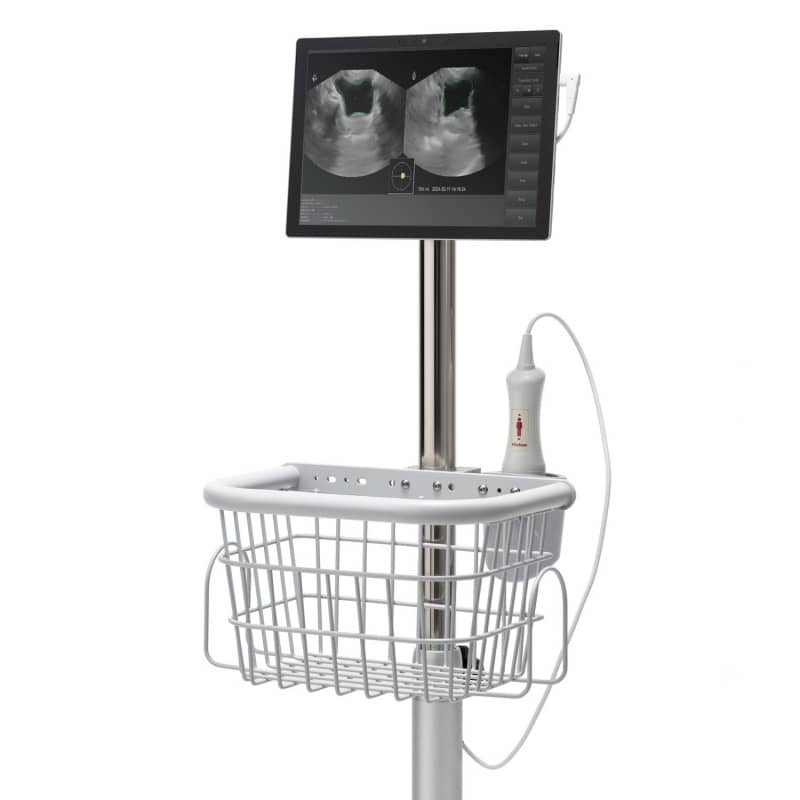

- Vitascan mobile cart (height-adjustable)
- Probe holder
- Basket
- Operating manual
