Vitascan eVue Bladder Scanner
Vitascan eVue Bladder Scanner
Couldn't load pickup availability
- Portable standalone device with integrated printer
- Manual adjustment of scan parameters
- Gender-neutral algorithm
- Equipped with Wi-Fi functions
- No routine calibration required
Vitascan eVue Bladder Scanner

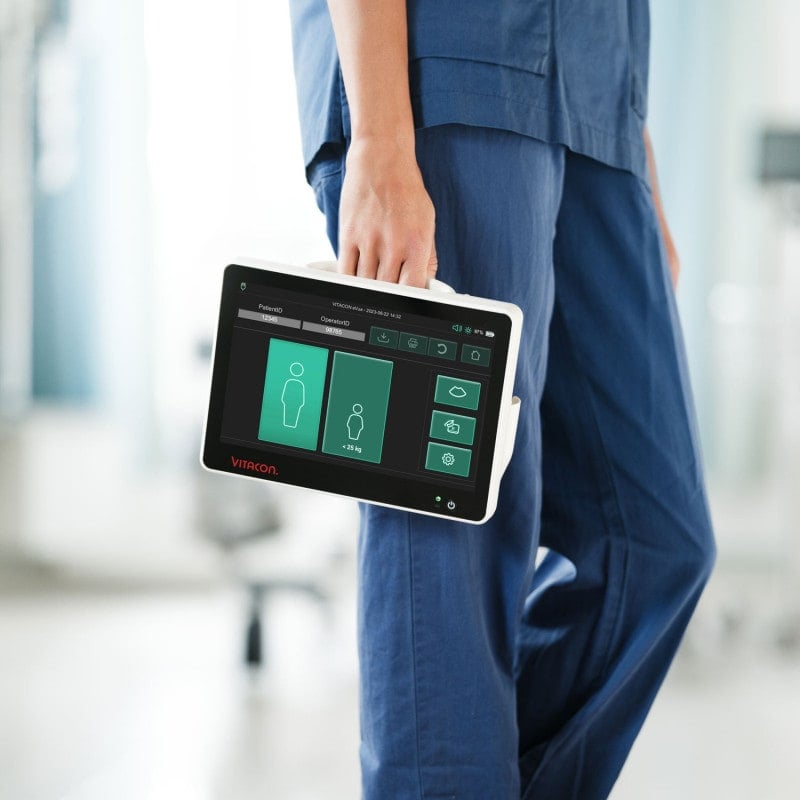

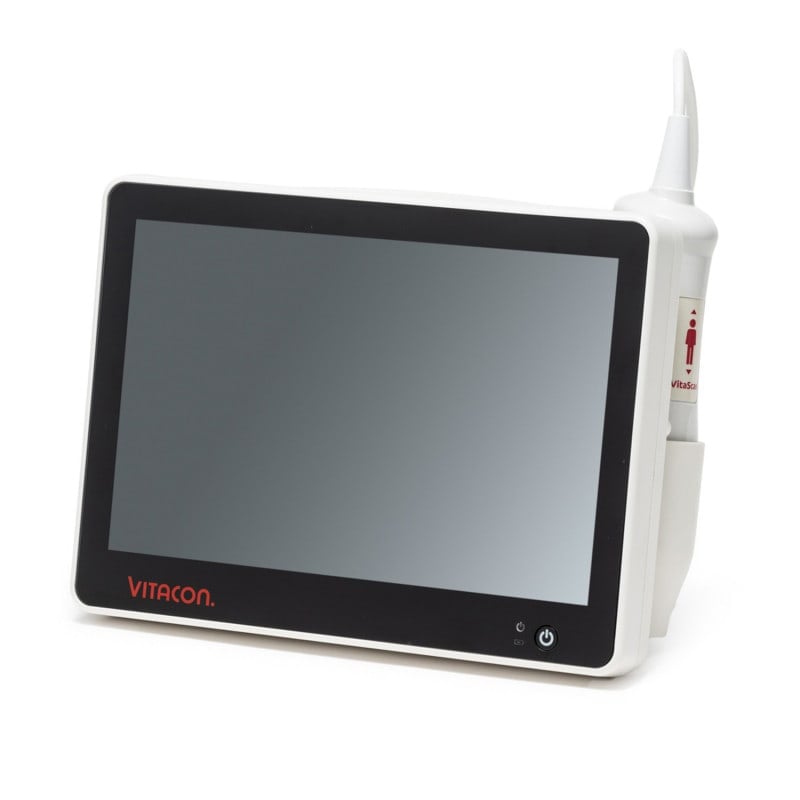

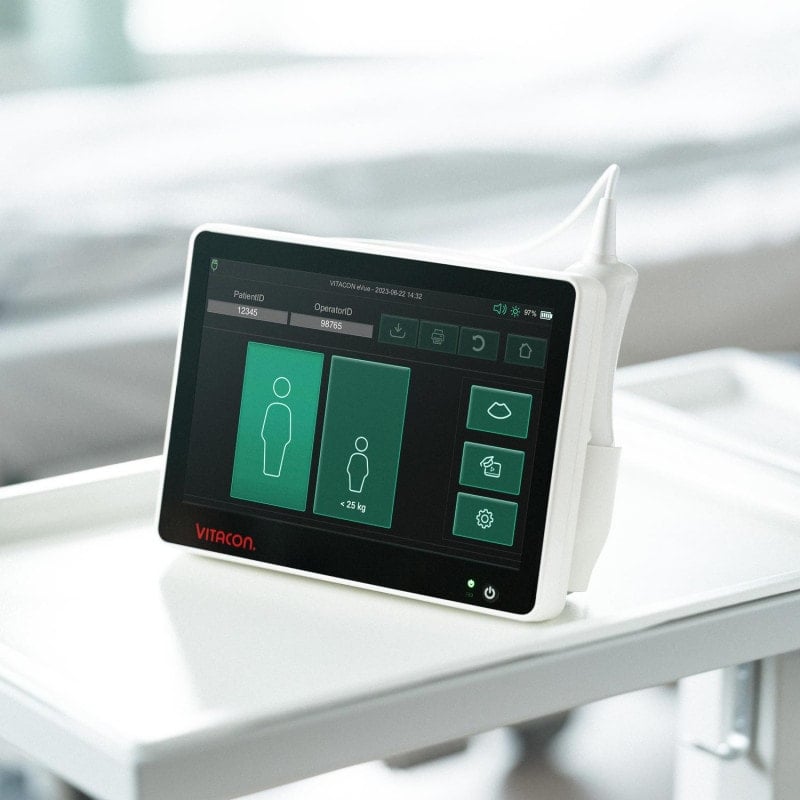

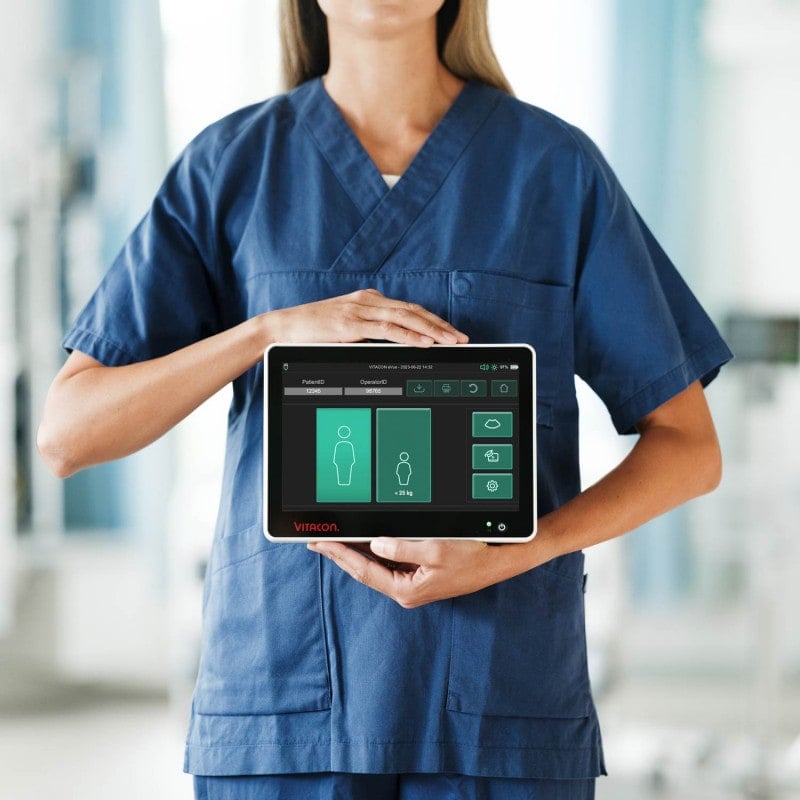

The Vitascan eVue Bladder Scanner from VITACON offers a portable and compact standalone solution for efficient patient care. With an integrated printer and convenient handle, the bladder scanner is suitable for flexible use and is perfect for home care. Its robust construction ensures durability and minimizes infection risk, while low operating costs enhance cost-effectiveness.

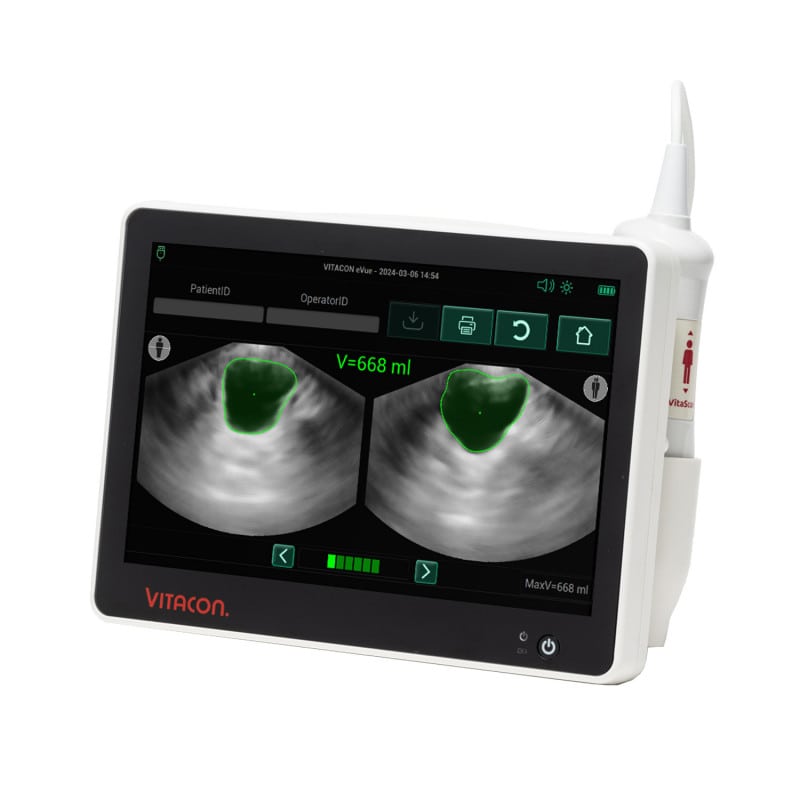

The Vitascan eVue Bladder Scanner features innovative BladderVue™ Bladder Detection Technology for reliable results. Its gender-neutral algorithm makes it equally suitable for both women and men. No routine calibration is required.

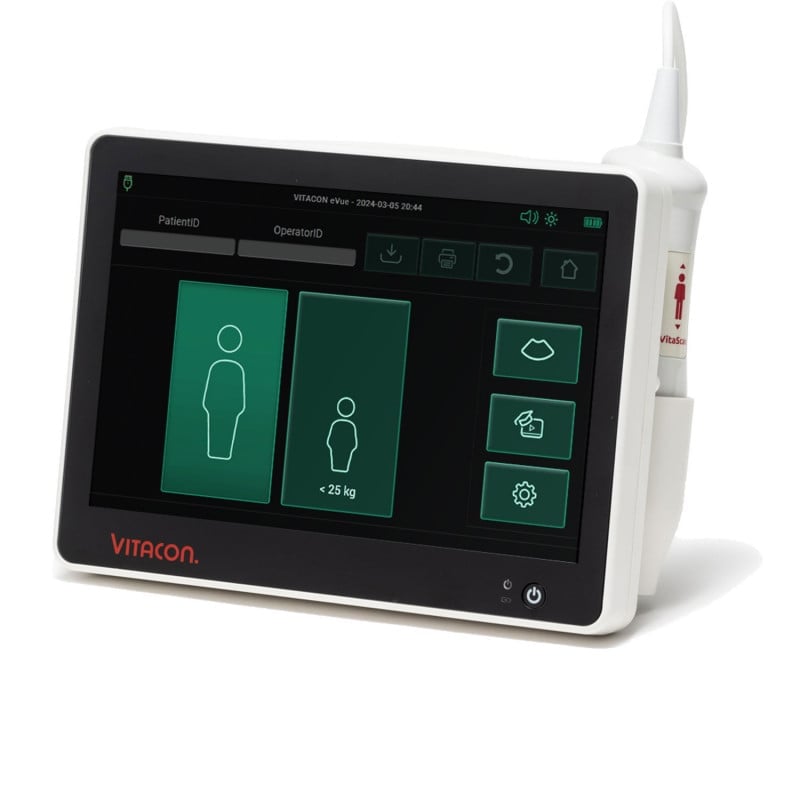

The scanner boasts a touchscreen for quick control, and capacitive touch technology that functions flawlessly even with gloves on. Users can manually adjust parameters to meet individual needs. Seamless integration with electronic health records (EHR) and fast, reliable Wi-Fi data transmission facilitate documentation and communication.
With optimal battery life, the Vitascan eVue Bladder Scanner offers uninterrupted operation. Software updates can be easily done via USB. An optional carrying case may be purchased separately.
Please note that you must order the optionally available accidental device coverage at the time of purchasing a Vitascan Bladder Scanner. Subsequent insurance coverage is not valid.
Product Details
- Vitascan eVue Bladder Scanner from VITACON
- Portable and compact standalone device
- With integrated printer and handle
- Capacitive touch technology operable even with gloves
- Touchscreen allows quick control with finger touch
- Manual adjustment of parameters to meet individual needs
- Operates with a gender-neutral algorithm
- BladderVue™ Bladder Detection Technology eliminates interference factors
- Robust construction ensures durability
- Equipped with Wi-Fi capabilities
- Seamless integration with electronic health records (EHR)
- Fast and reliable data transmission
- No routine calibration required
- Easy software update via USB
- Optimal battery life for uninterrupted operation
- Environmentally friendly, non-toxic, heavy-metal-free battery
- Low operating costs and minimal infection risk
- Efficient patient care at various locations
- Specially designed for home care use

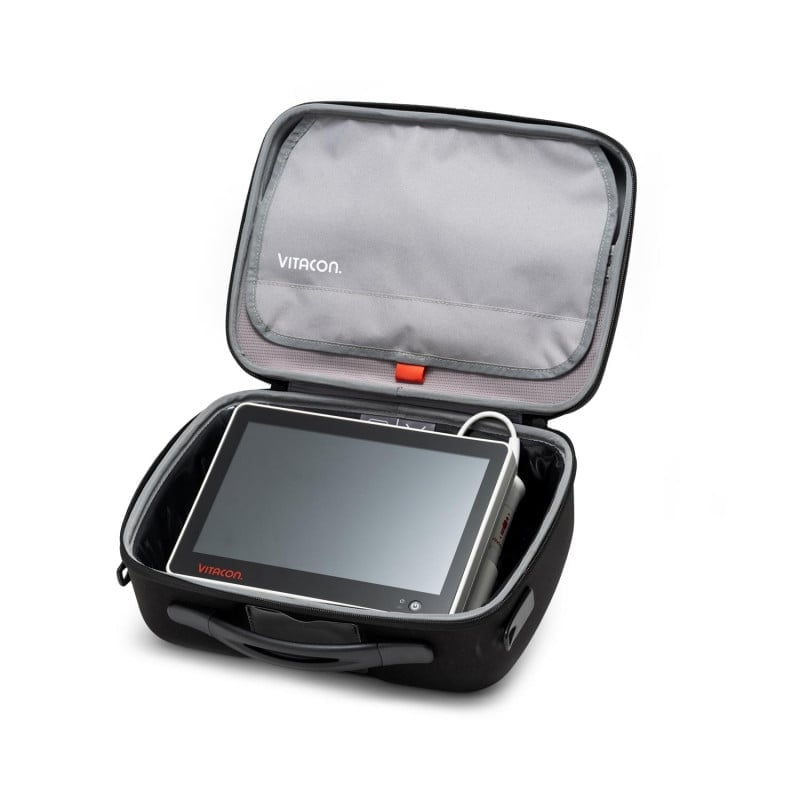

- Convenient carrying case may be purchased separately
- Manufacturer's Warranty: 24 months
Indications
- Decreased urine output following surgical procedures
- Enlarged prostate
- Urethral stricture
- Neurogenic bladder
- Spinal cord injuries
- Stroke
- Impaired cognitive abilities
- Kidney stones or kidney tumors
- Urinary incontinence
Technical Specifications
| Volume Range | 0-1000 ml |
| Accuracy | +/- 7.5% for volumes greater than 100 ml +/- 7.5 ml for volumes below 100 ml |
| Probe Frequency | 3.45 MHz |
| Scanning Method | Sector, 180 degrees |
| Rotation Positions | 12 or 24 |
| Scanning Angle | 130 degrees |
| Display Resolution | 1280 x 800 pixels |
| Display Brightness | 900-1000 cd/mA |
| Drop Test | ISO 60601-1 Standard, 15.3.4.1 |
| Input Voltage | 100-240VAC, 50-60 Hz |
| Dimensions (Control Unit) | 26.3 x 22.7 x 12.5 cm |
| Weight (Control Unit) | 1.77 kg |
| Dimensions (Probe) | 18.5 x 4.5 x 4.5 cm |
| Weight (Probe) | 380 g |
Delivery Contents
- Vitascan eVue Bladder Scanner with Printer

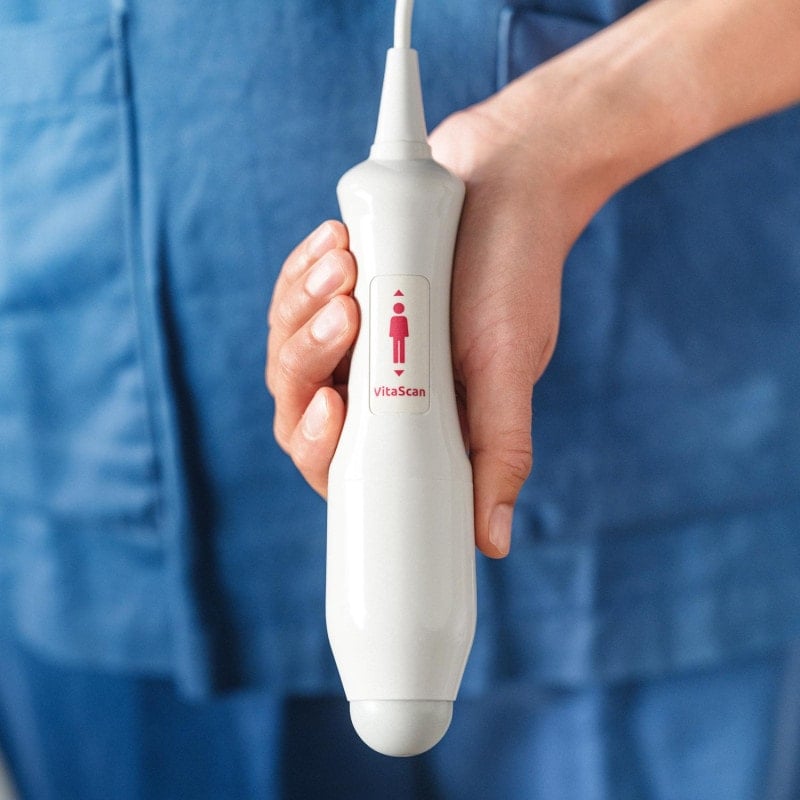

- Vitascan v.2 Probe
- USB-C Cable
- User Manual
