Oxygen Pressure Regulator Rescue 25

£213.71

~~£0.00~~ £213.71

Sale Sold out

Model Rescue 25

Quantity

Product overview

360° rotatable manometer
Adjustable flow rate
3/8" G; 1/4" G with nozzle
Pivotable flow output
Various models available

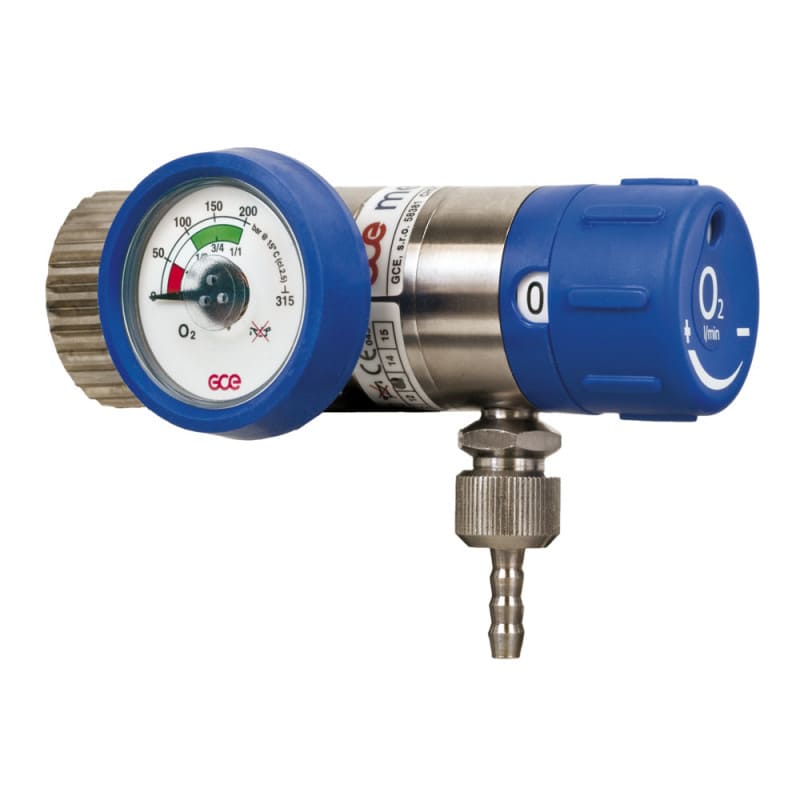

Oxygen Pressure Regulator

This oxygen pressure regulator is characterised by ergonomic properties, such as the optimal readability of the manometer. The pressure display can be rotated 360° and the entire device has a flat compact design. It complies with the requirements laid out be the relevant DIN standards, offers diverse settings and is available in various models.

Product Details

3/4" G thread
Flow settable from 0-25 l/min
360° rotatable manometer for optimal readability from all directions
Pivotable flow output allows connection from any direction
Uninterrupted flow, even when switching levels
The manometer is flat, compact and well protected
Self-centering flow setting knob with 2 displays
CE certified
Various models available

Specifications

Model	Rescue 25	Mediflow Ultra II	Duostar 2	Mediselect 2	Mediselect 6
ModelFlow levels 0-25 l/min	Rescue 25 0, 1, 2, 3, 4, 5, 6, 7, 9, 12, 15, 25	Mediflow Ultra II 0, 1, 2, 3, 4, 5, 6, 7, 9, 12, 15, 25	Duostar 2 0, 1, 2, 3, 4, 5, 6, 7, 9, 12, 15, 25	Mediselect 2 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 1, 1.5, 2	Mediselect 60, 0.25, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 5, 6
ModelInput pressure	Rescue 25 up to 200 bar	Mediflow Ultra II up to 200 bar	Duostar 2 up to 200 bar	Mediselect 2 up to 200 bar	Mediselect 6up to 200 bar
ModelOutput pressure	Rescue 25 4.5 bar	Mediflow Ultra II 2.5 \| 4.5 bar	Duostar 2 4.5 bar	Mediselect 2 up to 4.5 bar	Mediselect 6up to 4.5 bar
ModelValve	Rescue 25 3/8" G; 1/4" G with nozzle	Mediflow Ultra II 3/8" G; 1/4" G with nozzle	Duostar 2 3/8" G; 1/4" G with nozzle	Mediselect 2 G 9/16'	Mediselect 6G 9/16'
ModelHousing	Rescue 25 Nickel-plated brass	Mediflow Ultra II Nickel-plated brass	Duostar 2 Nickel-plated brass	Mediselect 2 Nickel-plated brass	Mediselect 6Nickel-plated brass
ModelFilter	Rescue 25 Sinter bronze and stainless steel	Mediflow Ultra II Sinter bronze and stainless steel	Duostar 2 Sinter bronze	Mediselect 2 Sinter bronze	Mediselect 6Sinter bronze
ModelClassification	Rescue 25 Medical Product Class IIb	Mediflow Ultra II Medical Product Class IIa	Duostar 2 Medical Product Class IIb	Mediselect 2 Medical Product Class IIb	Mediselect 6Medical Product Class IIb
ModelDIN Standards	Rescue 25 EN-738-1	Mediflow Ultra II EN 10524-4, EN 1789	Duostar 2 EN ISO 10524-1, EN 1789, EN ISO 9001, EN ISO 13485	Mediselect 2 EN 10524-1	Mediselect 6EN 10524-1

Please Note:

We recommend a technical functionality test every 5 years in order to guarantee proper functionality.

The pressure regulator has a usage life span of 10 years. The pressure regulator must be replaced after this time.
