Medireg O₂D Pressure Regulator 3-8" G output valve
Medireg O₂D Pressure Regulator 3-8" G output valve
Regular price
£230.12
Regular price
£0.00
Sale price
£230.12
Unit price
/
per
Couldn't load pickup availability
Product overview
- Special pressure regulator, acts as dispenser valve
- Approved up to 300 bar
- For use in ambulances
- Flat & compact pressure gauge
- G3/4" thread according to DIN 477

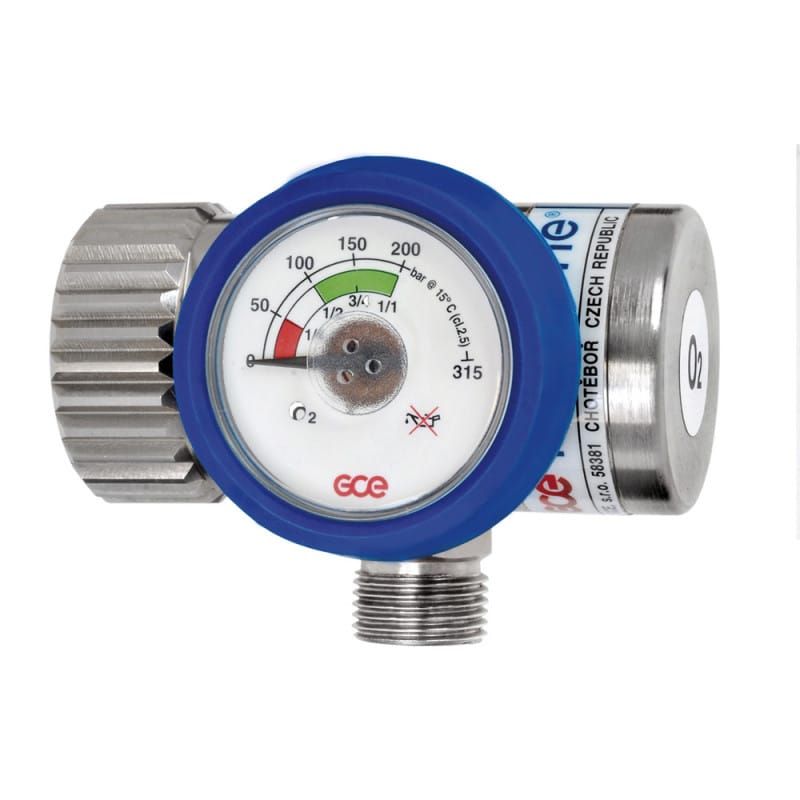

Medireg 100 O₂D Pressure Regulator
The Medireg 100 O₂D pressure regulator can be used as a dispenser valve in ambulances, for example. The easy-to-read manometer can be optimally done so from any direction since it can be rotated 360º. Thanks to the flat compact design with a rubber protective ring, this manometer is protected from becoming damaged. It is also ergonomically designed and very easy to clean. You can order this special pressure regulator with a ZGA DIN coupler or 3/8" G output valve.
Product Details for the Medireg 100 O₂D Pressure Regulator
- Special pressure regulator
- Suited as dispenser valve, e.g. in ambulances
- 3/4" G thread per DIN 477
- Manometer rotates 360º for optimal readability from all directions
- Easy-to-clean surface
- Well protected, flat compact manometer
- Ergonomic and modern design
- CE certified
- Optionally available with 3/8" G or ZGA valve
| Model | Medireg 100 O₂D DQC |
Medireg 100 O₂D |
|---|---|---|
| ModelOutput valve |
Medireg 100 O₂D DQC DIN quick coupler (ZGA) |
Medireg 100 O₂D3/8" G with nozzle |
|
ModelMax. flow rate |
Medireg 100 O₂D DQC 120 l/min |
Medireg 100 O₂D4 l/min |
| ModelInput pressure |
Medireg 100 O₂D DQC up to 300 bar |
Medireg 100 O₂D2.8-8 bar |
| ModelOutput pressure |
Medireg 100 O₂D DQC 4.5 bar |
Medireg 100 O₂D 4.5 bar |
| ModelHousing |
Medireg 100 O₂D DQC Nickel-plated bronze |
Medireg 100 O₂DNickel-plated bronze |
| ModelFilter |
Medireg 100 O₂D DQC Sinter bronze |
Medireg 100 O₂DSinter bronze |
| ModelClassification |
Medireg 100 O₂D DQC Medical product class IIb |
Medireg 100 O₂DMedical product class IIb |
|
ModelDIN standards |
Medireg 100 O₂D DQC EN 10524-1, EN 1789.2000 |
Medireg 100 O₂DEN 10524-1, EN 1789.2000 |
Please note:
We recommend functionality testing every 5 years. This pressure regulator has a usage lifespan of 10 years! The pressure regulator must be replaced after this time.
