"Inter-Therm" HME Filter Adult filter

Product overview

• HME filter with Luer port

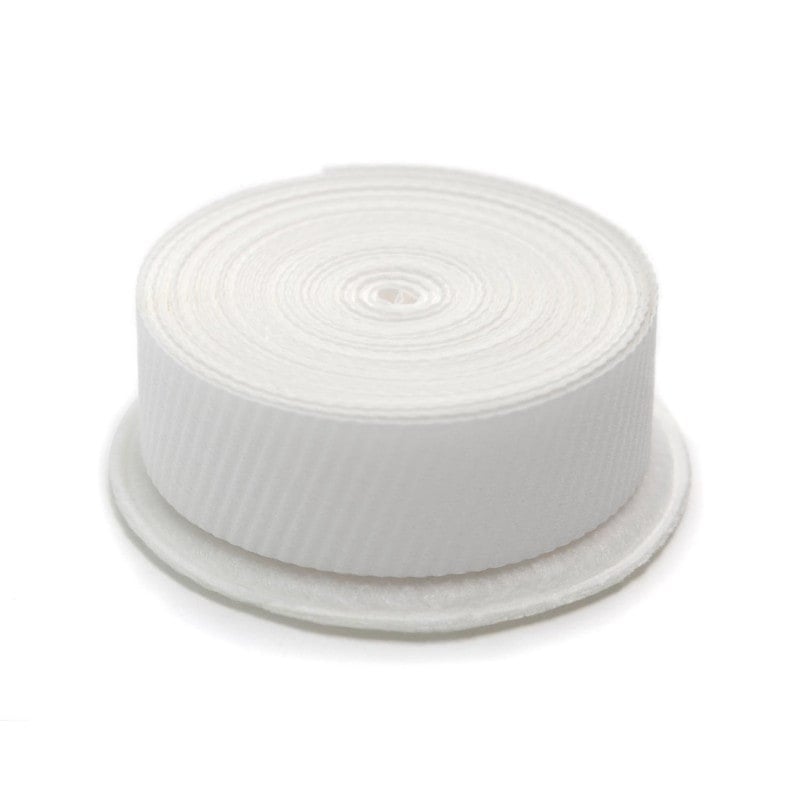

• HME element made from a rolled paper membrane
• With flow distributor for an even air flow
• Humidification capacity: 30 or 32 mg H2O/L
• Available for adults or children

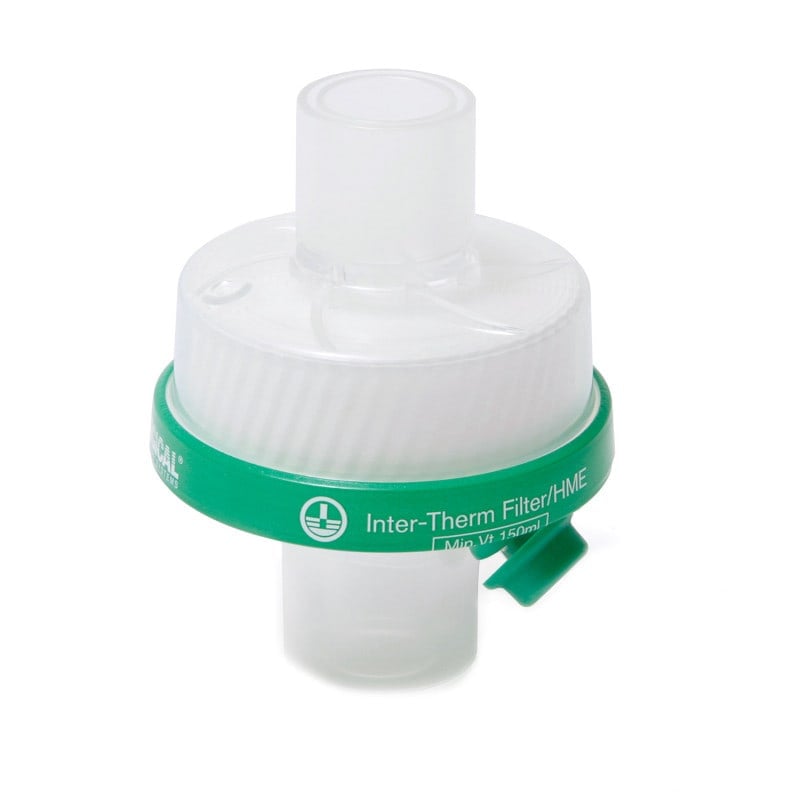

"Inter-Therm" HME Filter

The "Inter-Therm" HME filter from Intersurgical is a sterile heat and moisture exchanging filter for use at the patient connection of a ventilation system. The HME filter on the patient side provides a low flow resistance and the rolled paper membrane provides passive humidification of the inhaled air.

The filter performance against bacteria and viruses is at 99.999 % and protects the patient and the ventilator from cross-contamination. The heat and moisture exchanging filter is equipped with a Luer port and is available for adults and children.

Product Details

• "Inter-Therm" HME filter
• With Luer port
• HME element made from a rolled paper membrane
• With flow distributor for an even air flow
• HME on the patient side for a low flow resistance
• Flow resistance at 30 L/min: 1.6 cm H2O / 2.1 cm H2O (mini)
• Humidification capacity: 32 mg H2O/L / 30 mg H2O/L (mini)
• Bacteria / virus retention: more than 99.999 %
• Compressible volume: 57 ml / 28 ml (mini)
• Min. tidal volume: 150 ml / 75 ml (mini)
• Weight: 31 g / 20 g (mini)
• Quantity: 1 pc
